Description

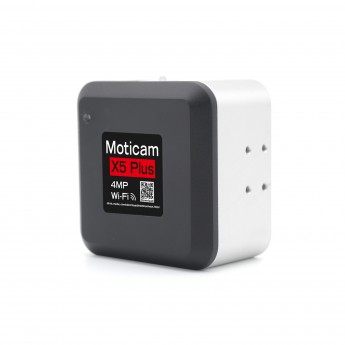

Turn your microscope into a Wi-Fi station and share your images with up to 6 devices at the same time. Simply logon with your tablet or smartphone and get ready to capture, edit and store your microscope images with the free MotiConnect App.
The Moticam X5 Plus transfers live images up to 30 fps and captures images at 4.0MP. It also allows you to integrate it to your own network either via Wi-Fi or Ethernet cable, allowing more users to be connected. Alternatively, it also works with our standard Motic Images Plus Software for computers.
Specifications
| Sensor | 1/3” CMOS Sensor | |||
| Sensor sizeX | 1/1.9” | |||
| Image area | 5.44 x 3.07mm | |||
| Capture resolution | 4MP | |||
| Pixel size | 2.0 x 2.0μm | |||
| Scan mode | Progressive | |||
| Shutter mode | Rolling Shutter | |||
| Data transfer | Wi-Fi (2.4 or 5 GHz) and Ethernet (RJ45) | |||
| Exposure time | 0.06~918ms | |||
| Operating temperature | From -10 to +50 Degrees Celsius non condensing | |||
| Operating Humidity | 30~80%RH | |||
| Lens Mount | CS-Mount | |||
| Frames per second (fps*) | 1120 mv with 1/30s | 0.15 mv with 1/30s | |||
| USB | USB 5V Output | |||
| RJ45 | LAN Port, Default IP: 192.168.2.151 | |||
| WiFi | 2.4G/5G (Suport 802.11ac), Default IP:192.168.1.151 | |||
| Image Compression Engine | H264 or MJPEG | |||
| Stream Resolution | Major: 1920 x 1080, 1280 x 720 | Minor: 640 x 360 | |||
| Software | MotiConnect for Android/iOS; Motic Images Plus 3.1 for Windows/Mac OS | |||
| Package includes | 12V Power Adapter, CS Ring, Motic 4-dot calibration slide, Dust Cap, Manual, 12mm lens, Adapter φ30/ φ38, Macro Tube, Macro Calibration card | |||
